Frame: Al alloy 6061#, unique design suspension system Fork: Rockshox Yari 27.5*160mm ,Boost 110*15mm Shock: Rochshox Deluxe 205*65mm,160mm Handlebar: Alloy 780mm length 25mm rise Handle Stem: Alloy handle stem 50mm or 35° 70mm length ,or 35° 90mm length Seat Post: Dropper seat post Φ31.6mm,120mm-150mm

Rim: Double-Wall thicker alloy for mountain bike 36H Spokes: Strong steel in black Tire: Schwalbe Smart Sam, 27.5*2.6″/27.5*2.6″ E50 Front HUB: Quanta 110*15mm Rear HUB: Quanta 148*12MM

Battery: Downtube integrated 48V, Samsung battery cells Charger: Output 54.6V/3A, AC100-240V

Fender: optional Luggage Rack: optional Dropper Post: optional GPS: — License: optional

Frame: Al alloy 6061#, unique design suspension system Fork: Rockshox Yari 27.5*160mm ,Boost 110*15mm Shock: Rochshox Deluxe 205*65mm,160mm Handlebar: Alloy 780mm length 25mm rise Handle Stem: Alloy handle stem 50mm or 35° 70mm length ,or 35° 90mm length Seat Post: Dropper seat post Φ31.6mm,120mm-150mm

Rim: Double-Wall thicker alloy for mountain bike 36H Spokes: Strong steel in black Tire: Schwalbe Smart Sam, 27.5*2.6″/27.5*2.6″ E50 Front HUB: Quanta 110*15mm Rear HUB: Quanta 148*12MM

Battery: Downtube integrated 48V, Samsung battery cells Charger: Output 54.6V/3A, AC100-240V

Fender: optional Luggage Rack: optional Dropper Post: optional GPS: — License: optional

Max Speed： 45Km/h

M560

Swiss S-pedelec Homologation

Max Speed： 45Km/h

M560

Swiss S-pedelec Homologation

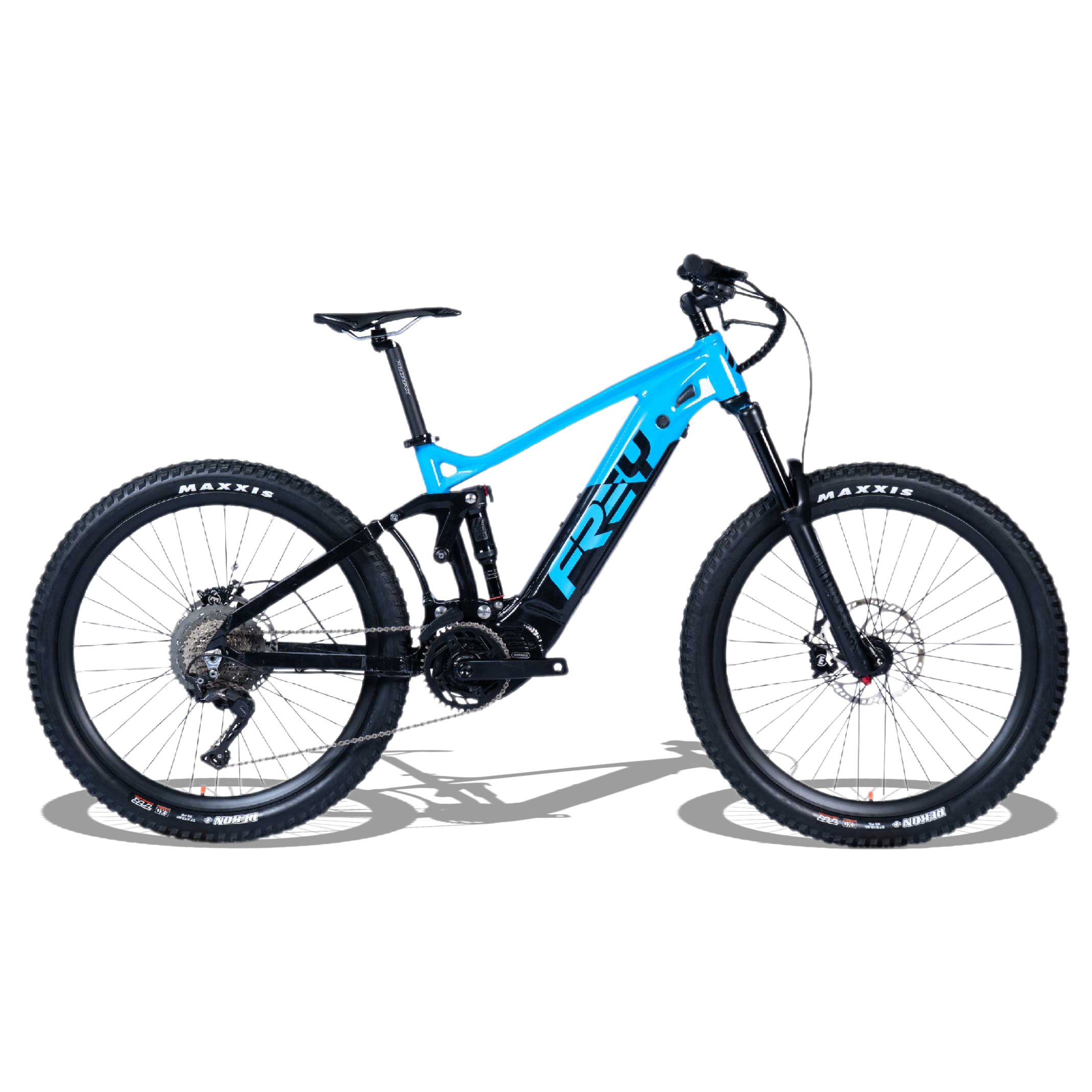

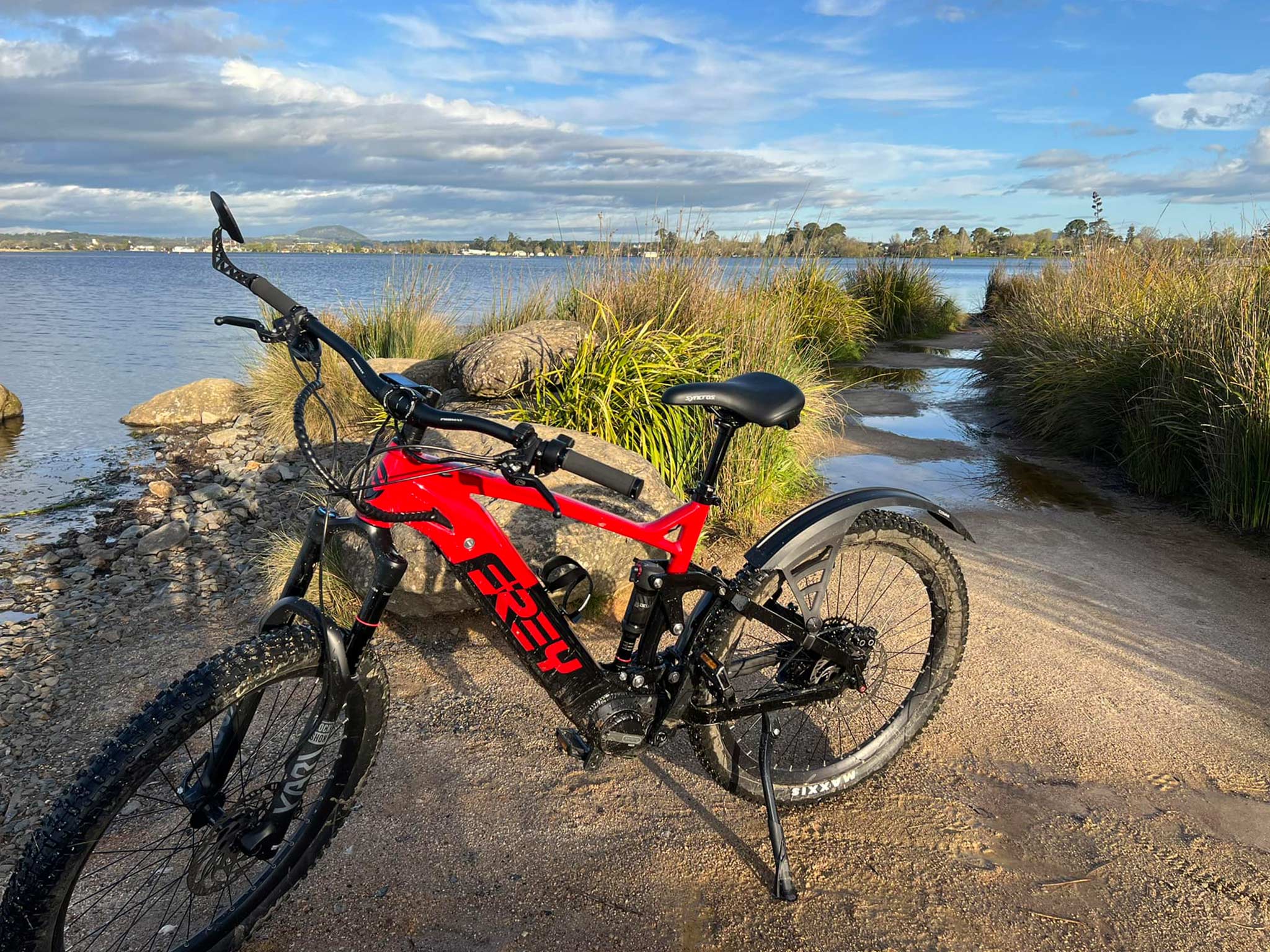

M560 S-pedelec eBike

The FREY M560 is a versatile all-rounder built for comfortable commuting and confident off-road adventures.
From daily city rides to demanding enduro trails, its full-suspension design delivers smooth control and riding comfort across all terrains.
Lightweight, powerful, and adaptable, the M560 suits riders from 160 to 190 cm, making it the ideal choice for those who want one e-bike for every journey.

Road permit available speed: 45Km/h.

M560 S-pedelec eBike

Road permit available speed: 45Km/h.

M560 Colors

The M560 is available in multiple sizes (M, L, XL) and various colors. It is an SUV E-BIKE that perfectly integrates performance, quality and versatility.

M560 Colors

The M560 is available in multiple sizes (M, L, XL) and various colors. It is an SUV E-BIKE that perfectly integrates performance, quality and versatility.

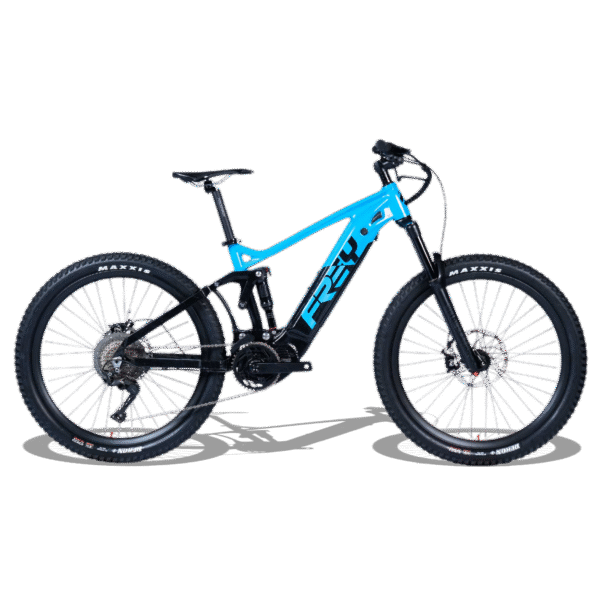

M560

The FREY M560 is driven by a high-performance 500 W Bafang M560 mid-drive motor delivering up to 130 Nm of torque, outperforming competitors in both power and range by up to 50%.
Its massive 960 Wh battery ensures exceptional endurance, while the lightweight build of just 26–27 kg keeps handling agile and responsive.
Available with or without road approval, in sizes M, L, and XL, the M560 also features the popular thumb throttle for added riding control and flexibility.

Crosscountry

Enduro/Trail

Bike Trailor

Urban/Leisure

CHF4,380.00

SKU: M560

color

size

清除

M560 Specs

POWER SYSTEM

Motor: Bafang M560.500W, Max Torque: 130N.m
Controller: Bafang matching controller system in motor
Display: Color LCD, DPC240 CAN
Pedal Sensor: Cadence & Torque
Throttle: Thumb throttle

TRANSMISSION

Crank Wheel: 40T alloy crank wheel with protector plate for chain
Crank ARM: Alloy 170mm crank arm
Derailleur: SRAM NX11
Gear Shifter: SRAM NX11
Cassette: SRAN 11s (11-42T)
Chain: KMC e 11 speed chain

BRAKE SYSTEM

Brake Lever：Magura MT5e with brake sensor
Brakes: Magura MT5e 4-piston 203/203mm

SIZE & COLOR

Size: M, L, XL
Color: Black, Blue

FRAME WORK

Frame: Al alloy 6061#, unique design suspension system
Fork: Rockshox Yari 27.5*160mm ,Boost 110*15mm
Shock: Rochshox Deluxe 205*65mm,160mm
Handlebar: Alloy 780mm length 25mm rise
Handle Stem: Alloy handle stem 50mm or 35° 70mm length ,or 35° 90mm length
Seat Post: Dropper seat post Φ31.6mm,120mm-150mm

WHEEL SETS

Rim: Double-Wall thicker alloy for mountain bike 36H
Spokes: Strong steel in black
Tire: Schwalbe Smart Sam, 27.5*2.6″/27.5*2.6″ E50
Front HUB: Quanta 110*15mm
Rear HUB: Quanta 148*12MM

BATTERY

Battery: Downtube integrated 48V, Samsung battery cells
Charger: Output 54.6V/3A, AC100-240V

ACCESSORIES

Fender: optional
Luggage Rack: optional
Dropper Post: optional
GPS: —
License: optional

M560 Specs

POWER SYSTEM

Motor: Bafang M560.500W, Max Torque: 130N.m
Controller: Bafang matching controller system in motor
Display: Color LCD, DPC240 CAN
Pedal Sensor: Cadence & Torque
Throttle: Thumb throttle

TRANSMISSION

Crank Wheel: 40T alloy crank wheel with protector plate for chain
Crank ARM: Alloy 170mm crank arm
Derailleur: SRAM NX11
Gear Shifter: SRAM NX11
Cassette: SRAN 11s (11-42T)
Chain: KMC e 11 speed chain

BRAKE SYSTEM

Brake Lever：Magura MT5e with brake sensor
Brakes: Magura MT5e 4-piston 203/203mm

SIZE & COLOR

Size: M, L, XL
Color: Black, Blue

FRAME WORK

Frame: Al alloy 6061#, unique design suspension system
Fork: Rockshox Yari 27.5*160mm ,Boost 110*15mm
Shock: Rochshox Deluxe 205*65mm,160mm
Handlebar: Alloy 780mm length 25mm rise
Handle Stem: Alloy handle stem 50mm or 35° 70mm length ,or 35° 90mm length
Seat Post: Dropper seat post Φ31.6mm,120mm-150mm

WHEEL SETS

Rim: Double-Wall thicker alloy for mountain bike 36H
Spokes: Strong steel in black
Tire: Schwalbe Smart Sam, 27.5*2.6″/27.5*2.6″ E50
Front HUB: Quanta 110*15mm
Rear HUB: Quanta 148*12MM

BATTERY

Battery: Downtube integrated 48V, Samsung battery cells
Charger: Output 54.6V/3A, AC100-240V

ACCESSORIES

Fender: optional
Luggage Rack: optional
Dropper Post: optional
GPS: —
License: optional

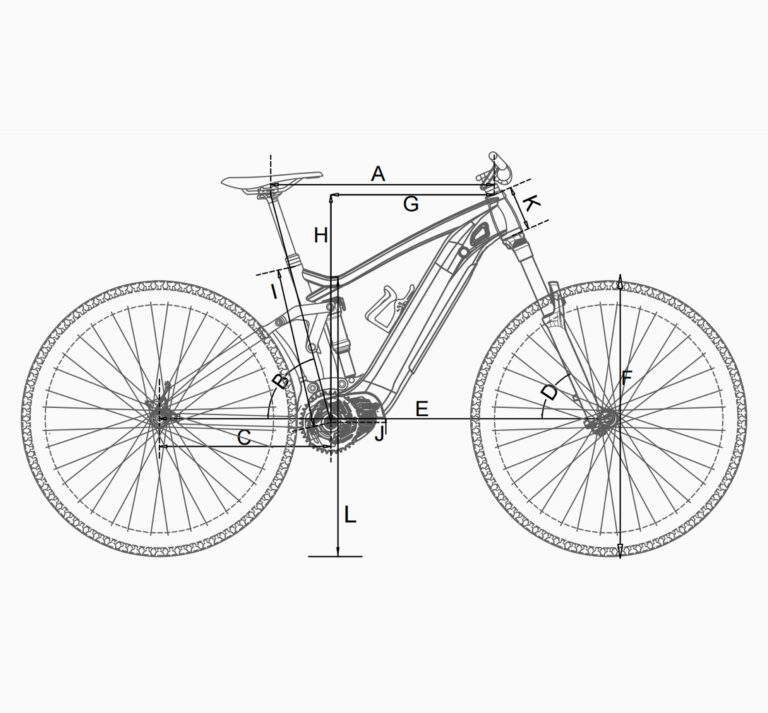

Geometry

All measurements are in millimeters unless otherwise stated.

M560 : Fork 27.5″*160

Geometries Unit: mm
M560 BIKE	M	L	XL
A TOP TUBE HORIZONTAL	599.7	614.2	634.21
B SEAT TUBE ANGLE	75°	75°	75°
C CHAINSTAYS	459.8	459.8	459.8
D HEAD TUBE ANGLE	66.5°	66.5°	66.5°
E WHEELBASE	1204.7	1220	1240
F WHEEL SIZE	27.5*2.8″	27.5*2.8″	27.5*2.8″
G REACH	438	449.3	469.3
H STACK	611.1	620.3	620.3
I SEAT TUBE	430	470	510
J BB DROP	10.2	10.2	10.2
K HEAD TUBE LENGTH	120	130	130
L STANDOVER	746.4	771.8	792.6

Size	Rider Height	Rider Height
M	165-175cm	5’4″ – 5’9″
L	170-185cm	5’7″ – 6’1″
XL	180-195cm	5’11″ – 6’5″

Geometry

All measurements are in millimeters unless otherwise stated.

Geometries Unit: mm
M560 BIKE	M	L	XL
A TOP TUBE HORIZONTAL	599.7	614.2	634.21
B SEAT TUBE ANGLE	75°	75°	75°
C CHAINSTAYS	459.8	459.8	459.8
D HEAD TUBE ANGLE	66.5°	66.5°	66.5°
E WHEELBASE	1204.7	1220	1240
F WHEEL SIZE	27.5*2.8″	27.5*2.8″	27.5*2.8″
G REACH	438	449.3	469.3
H STACK	611.1	620.3	620.3
I SEAT TUBE	430	470	510
J BB DROP	10.2	10.2	10.2
K HEAD TUBE LENGTH	120	130	130
L STANDOVER	746.4	771.8	792.6
