Max Speed​： 60Km/h

CC V2

Swiss S-pedelec Homologation

Max Speed​： 60Km/h

CC V2

Swiss S-pedelec Homologation

CC V2 City SUV

CC is a 1000W full-suspension electric bike featuring a distinctive step-through frame design. Equipped with a throttle, it reaches a top speed of 35 miles per hour. Whether you’re a beginner or an experienced rider, CC is a versatile choice for anyone seeking electric bike adventures in the great outdoors.

CC_2_pc

Max Speed

60Km/h

Max Battery

1440Wh/6.9Kg

Max Power

1500W/160Nm

Max Range

≈165km

Weigh(ex.bat.)

28Kg

Payload

≈110Kg

CC V2 City SUV

CC is a 1000W full-suspension electric bike featuring a distinctive step-through frame design. Equipped with a throttle, it reaches a top speed of 35 miles per hour. Whether you’re a beginner or an experienced rider, CC is a versatile choice for anyone seeking electric bike adventures in the great outdoors.

CC_2_pc

Max Speed

60Km/h

Max Battery

1440Wh/6.9Kg

Max Power

1500W/160Nm

Max Range

≈165km

Weight(ex.bat.)

28Kg

Payload

≈110Kg

CC V2 Colors

Available in red, cream and black in one size fits all for riders 160-180cm tall.

The Frey AM1000 CC is a full-suspension step-through e-bike with a focus on comfort. It’s also ideal for riders with shorter legs or joint problems.
Nevertheless, the most powerful mid-drive motor in Switzerland, with 160 Nm of torque, and the integrated 840–1440 Wh battery deliver impressive performance and range.

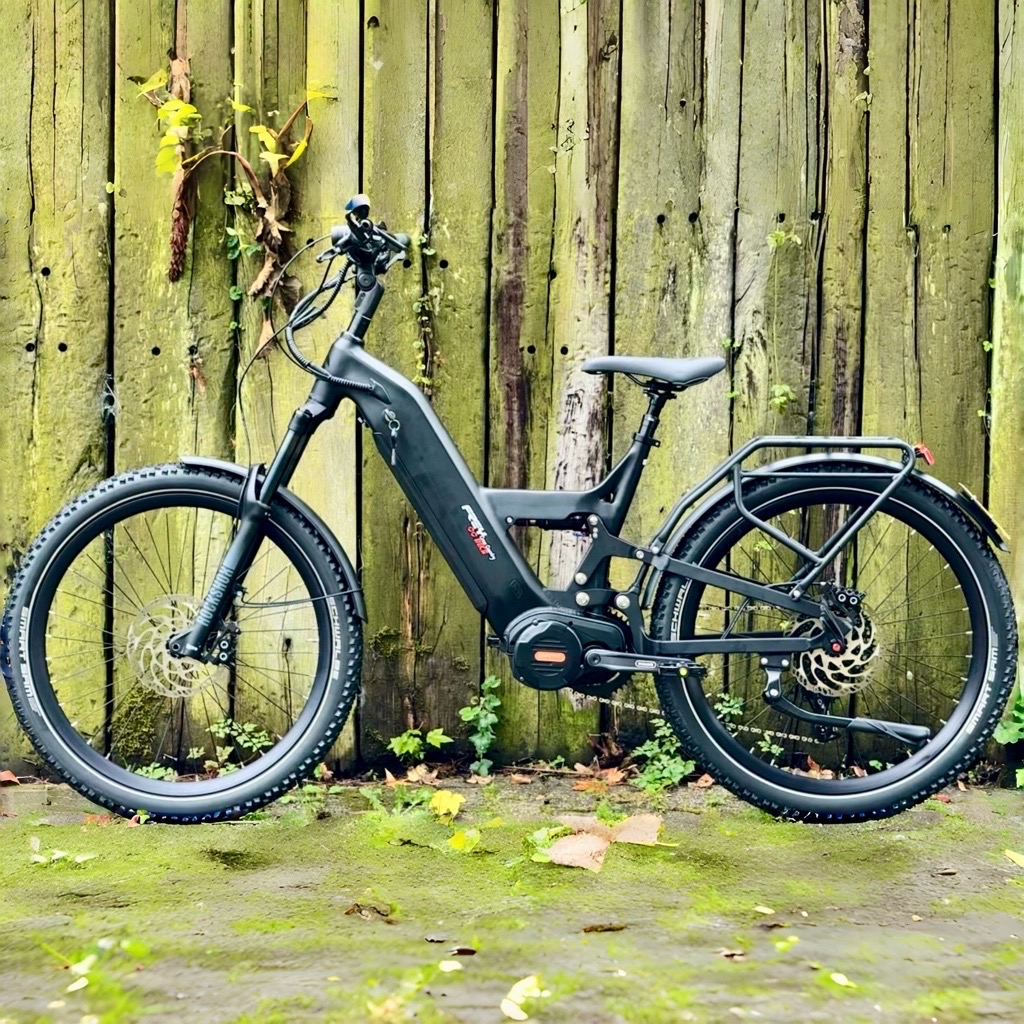

Black
Black

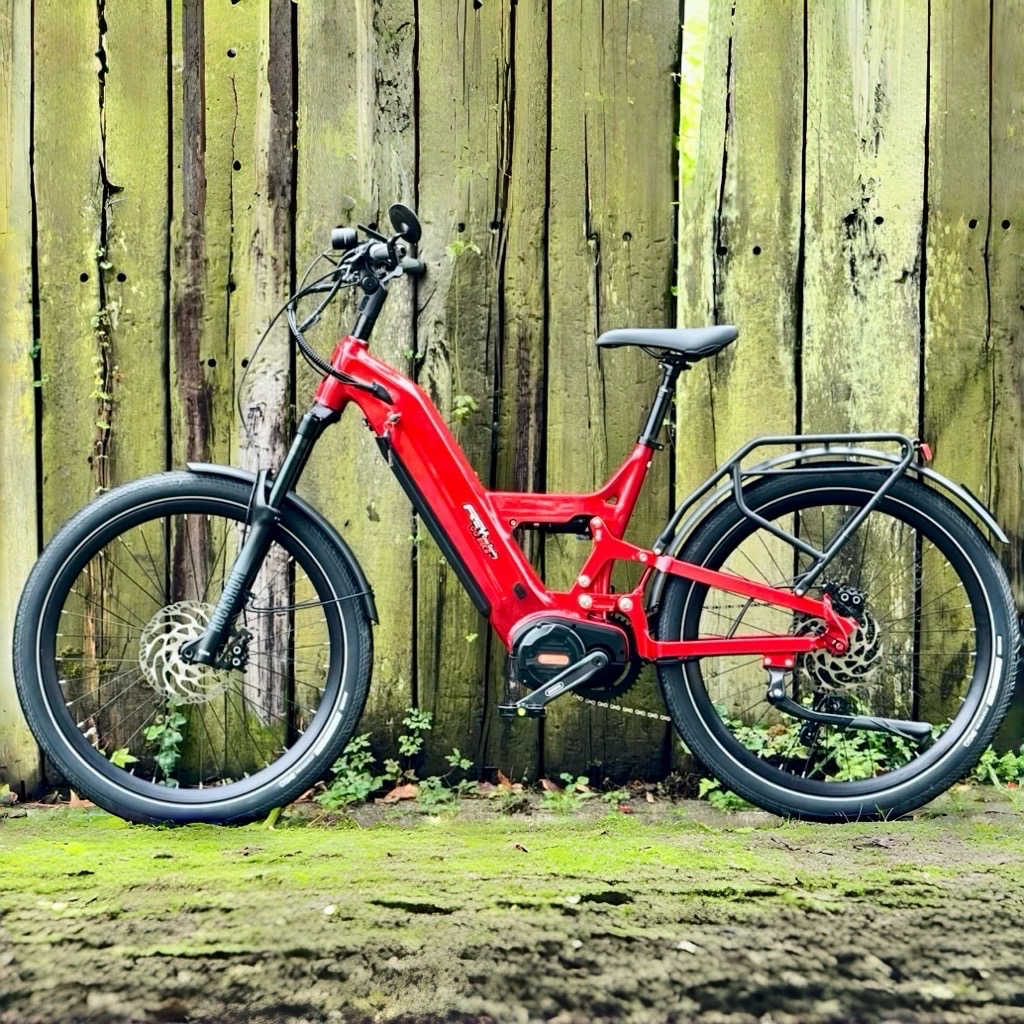

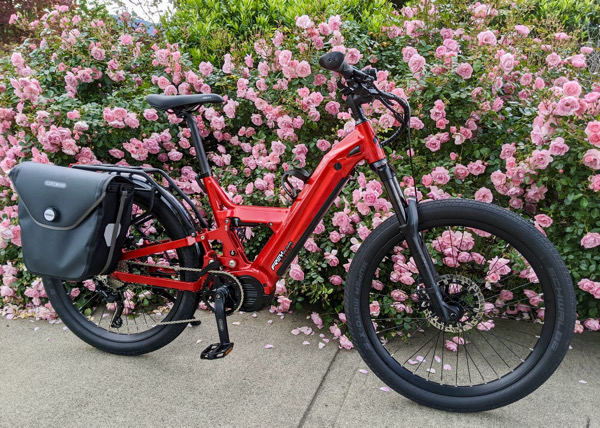

Red
Red

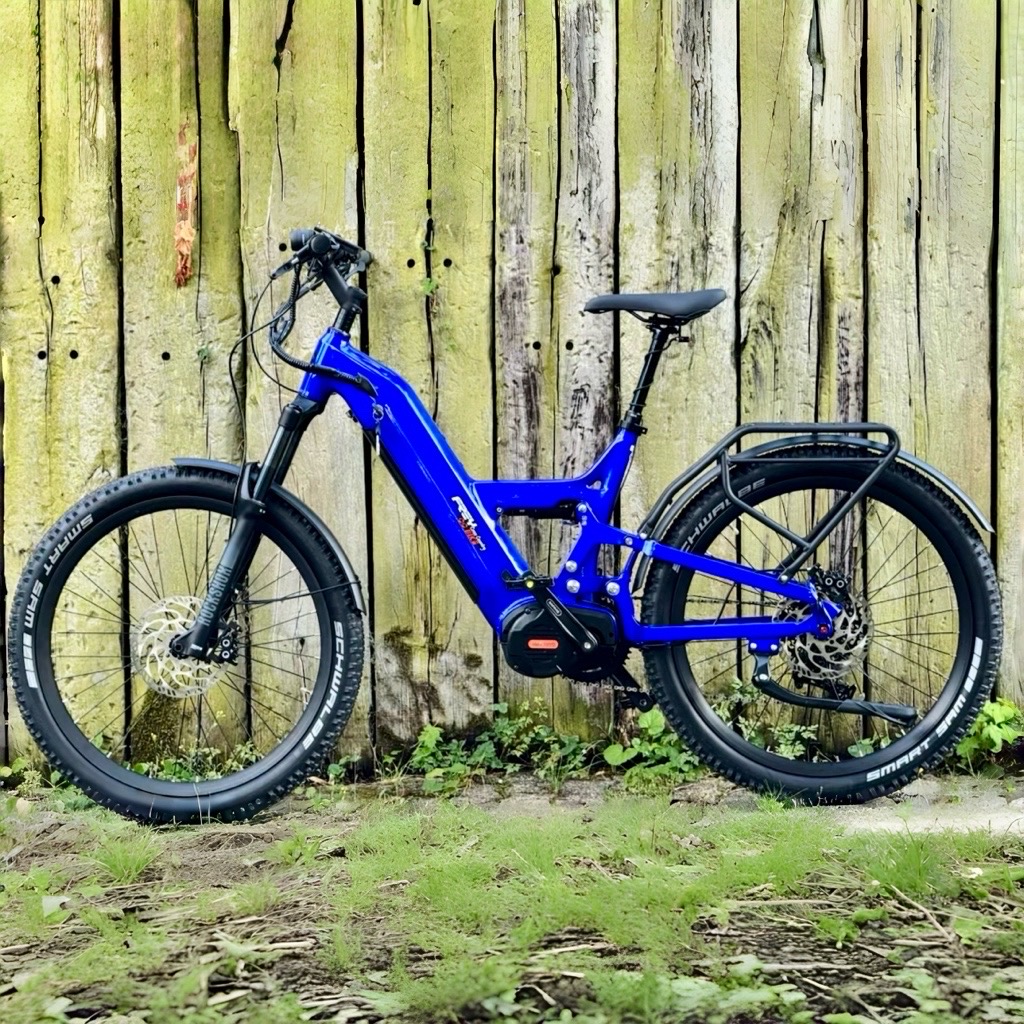

Blue
Blue
Cream
Cream

CC V2 Colors

Available in red, cream and black in one size fits all for riders 160-180cm tall.

Black
Red
Cream
Blue

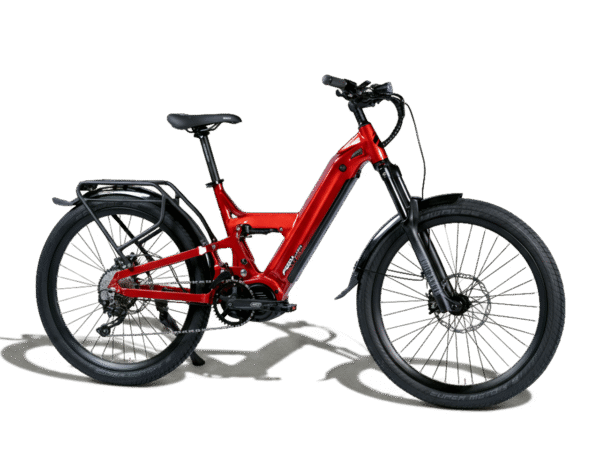

CC V2

Allrounder for comfortable commuting and for leisure offroad trips (cross country). Body size: 158-182cm. Optimized for long-distance performance and endurance.

Crosscountry

Enduro/Trail

Bike Trailor

Urban/Leisure

Facebook
LinkedIn
Telegram
Reddit
X

CHF4,460.00

SKU: AM1000CC

CC v2 Specs

  • Motor: Bafang M620.1000W, Max Torque: 160N.m
  • Controller: Bafang matching controller system in motor
  • Display: Color LCD, DP C18.UART
  • Pedal Sensor: Cadence & Torque
  • Throttle: Thumb throttle
  • Certifications: CE / UL2849
  • Manual: M620.pdf
  • Crank Wheel: 44T alloy crank wheel with protector plate for chain
  • Crank ARM: Alloy 170mm crank arm
  • Derailleur: SRAM NX11
  • Gear Shifter: SRAM NX11
  • Cassette: SRAM 11s (11-42T)
  • Chain: KMC e 11 speed chain
  • Brake Lever：Magura MT5e Ne with brake sensor
  • Brakes: Magura MT5e 4-piston 203/203mm
  • Size: M/L one size
  • Color: Black, red, cream
  • Frame: Alloy 6061#, 27.5 Trail geometry design, full suspension, 110mm travel
  • Fork: Rockshox Recon RL Boost 110*15mm 130/150
  • Shock: Rockshox Monarch 165*38mm
  • Handlebar: Alloy 780mm length 25mm rise
  • Handle Stem: Alloy handle stem 50mm or 35° 70mm length ,or 35° 90mm length
  • Seat Post: Dropper seat post Φ31.6mm 120mm-150mm
  • Rim:  Double-Wall thicker alloy for CC bike 36H
  • Spokes: Strong steel in black
  • Tire: Schwalbe Smart Sam, 27.5*2.6″/27.5*2.6″ E50
  • Front HUB: Quanta 110*15mm
  • Rear HUB: Quanta 148*12MM
  • Battery: Downtube integrated 48V,Samsung battery cells
  • Charger: Output 54.6V/5A, AC100-240V
  • Fender: optional
  • Luggage Rack:optional
  • Dropper Post: optional
  • GPS: included
  • License: optional

CC V2 Specs

  • Motor: Bafang M620.1000W, Max Torque: 160N.m
  • Controller: Bafang matching controller system in motor
  • Display: Color LCD, DP C18.UART
  • Pedal Sensor: Cadence & Torque
  • Throttle: Thumb throttle
  • Certifications: CE / UL2849
  • Manual: M620.pdf
  • Crank Wheel: 44T alloy crank wheel with protector plate for chain
  • Crank ARM: Alloy 170mm crank arm
  • Derailleur: SRAM NX11
  • Gear Shifter: SRAM NX11
  • Cassette: SRAM 11s (11-42T)
  • Chain: KMC e 11 speed chain
  • Brake Lever：Magura MT5e Ne with brake sensor
  • Brakes: Magura MT5e 4-piston 203/203mm
  • Size: M/L one size
  • Color: Black, red, cream
  • Frame: Alloy 6061#, 27.5 Trail geometry design, full suspension, 110mm travel
  • Fork: Rockshox Recon RL Boost 110*15mm 130/150
  • Shock: Rockshox Monarch 165*38mm
  • Handlebar: Alloy 780mm length 25mm rise
  • Handle Stem: Alloy handle stem 50mm or 35° 70mm length ,or 35° 90mm length
  • Seat Post: Dropper seat post Φ31.6mm 120mm-150mm
  • Rim:  Double-Wall thicker alloy for CC bike 36H
  • Spokes: Strong steel in black
  • Tire: Schwalbe Smart Sam, 27.5*2.6″/27.5*2.6″ E50
  • Front HUB: Quanta 110*15mm
  • Rear HUB: Quanta 148*12MM
  • Battery: Downtube integrated 48V,Samsung battery cells
  • Charger: Output 54.6V/5A, AC100-240V
  • Fender: optional
  • Luggage Rack:optional
  • Dropper Post: optional
  • GPS: included
  • License: optional

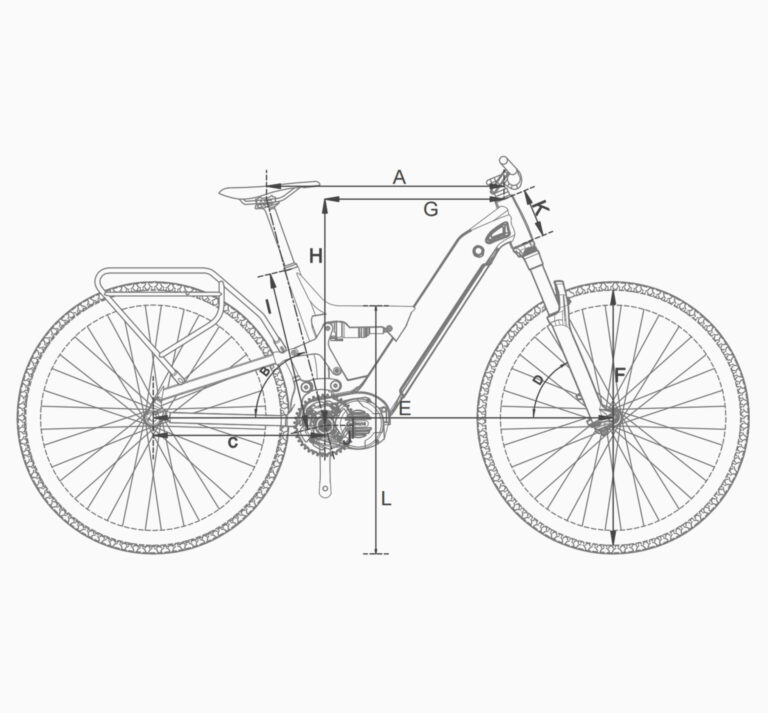

Geometry

All measurements are in millimeters unless otherwise stated.

CC V2

CCOne Size Fits All
A    TOP TUBE HORIZONTAL638.9
B    SEAT TUBE ANGLE74.8°
C    CHAINSTAYS469.5
D   HEAD TUBE ANGLE67.5°
E   WHEELBASE1250.9
F   WHEEL SIZE(F/R)27.5
G   REACH474
H   STACK608
I     SEAT TUBE435
J    BB DROP20.5
K   HEAD TUBE LENGTH130
L    STANDOVER666.4

A perfectly designed, low-slung, full-suspension commuter bike with a 1000W ULTRA drive system.

Geometry

All measurements are in millimeters unless otherwise stated.

CCOne Size Fits All
A    TOP TUBE HORIZONTAL638.9
B    SEAT TUBE ANGLE74.8°
C    CHAINSTAYS469.5
D   HEAD TUBE ANGLE67.5°
E   WHEELBASE1250.9
F   WHEEL SIZE(F/R)27.5
G   REACH474
H   STACK608
I     SEAT TUBE435
J    BB DROP20.5
K   HEAD TUBE LENGTH130
L    STANDOVER666.4



Geometries Unit: mm

A perfectly designed, low-slung, full-suspension commuter bike with a 1000W ULTRA drive system.

CC Friends

Welcome to FREY!

CC Friends

Welcome to FREY!

IMG_2469

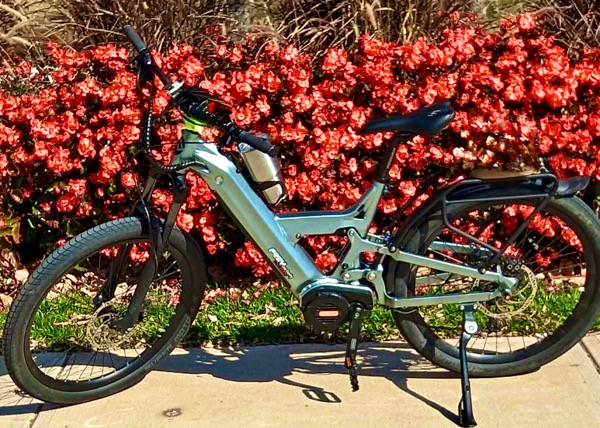

Blue
IMG_2468

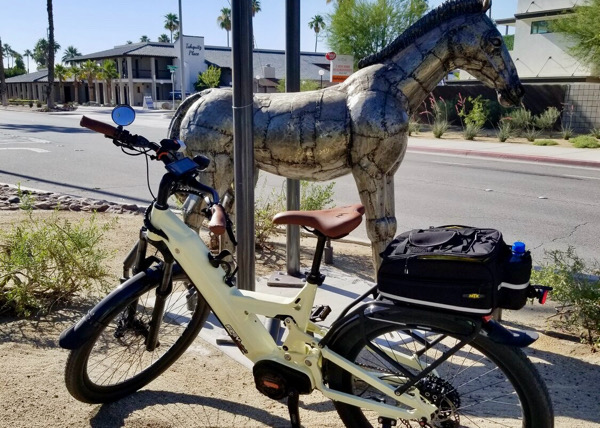

IMG_2471

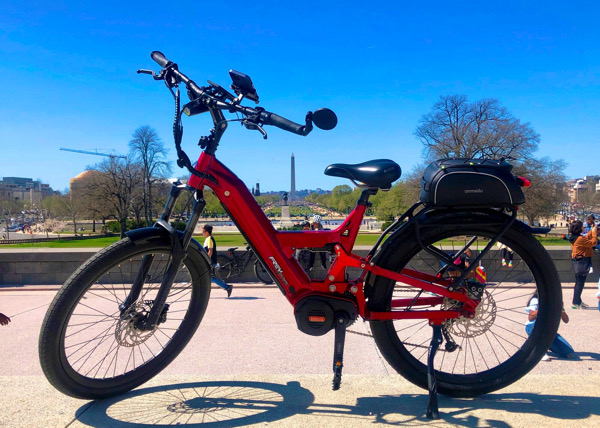

IMG_2457
IMG_2465
IMG_2461

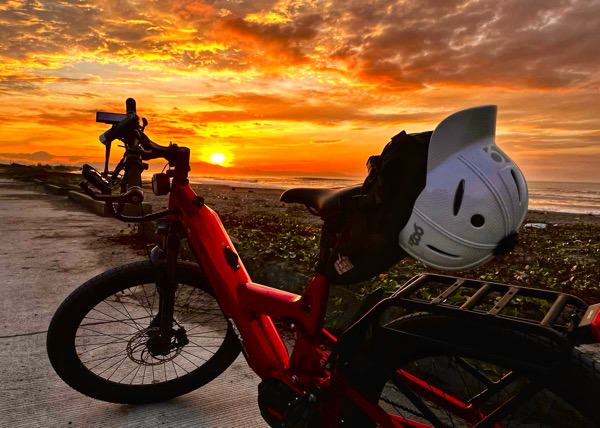

IMG_2460
IMG_2464

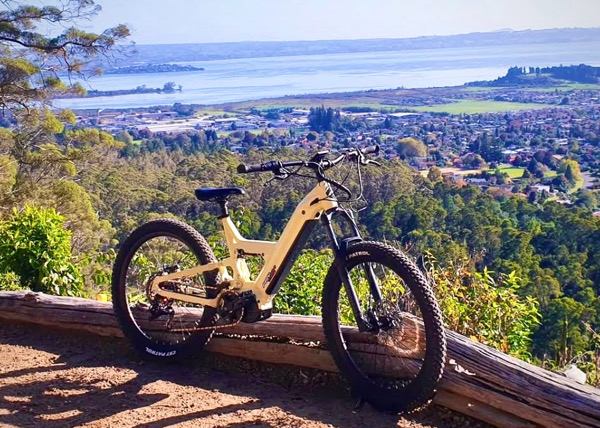

IMG_2462
IMG_2454
IMG_2456
IMG_2459
IMG_2453
IMG_2463
Black
IMG_2455
IMG_2469
Blue
IMG_2471
IMG_2461
IMG_2465
IMG_2457
IMG_2459
IMG_2468
IMG_2460
IMG_2453
IMG_2462
IMG_2467
Red
IMG_2454
IMG_2456
IMG_2463
Black
IMG_2455

CC V2

CHF4,460.00

SKU: AM1000CC

Allrounder for comfortable commuting and for leisure offroad trips (cross country). Body size: 158-182cm. Optimized for long-distance performance and endurance.

CC V2
CC V2 - 图片 2
CC V2 - 图片 3

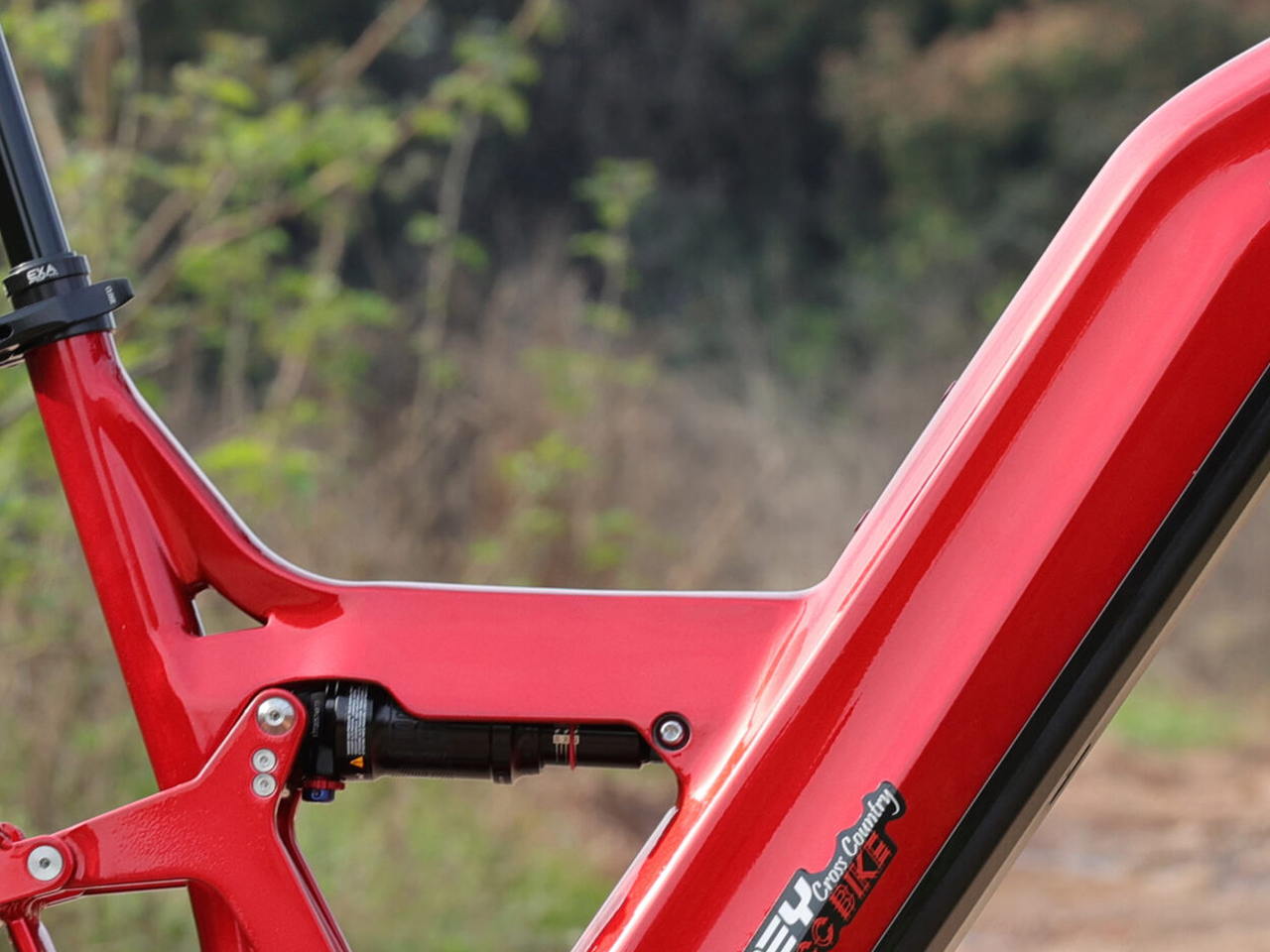

CC V2 - 图片 4
CC V2 - 图片 5

Thank you for your interest in CC

If you have any questions, please feel free to contact us, or click the button below to find our phone number.
